Authentication Flows

At Wisemen, Zitadel is usually used as the authentication provider. Below are sequence diagrams for different authentication scenarios.

Scenarios

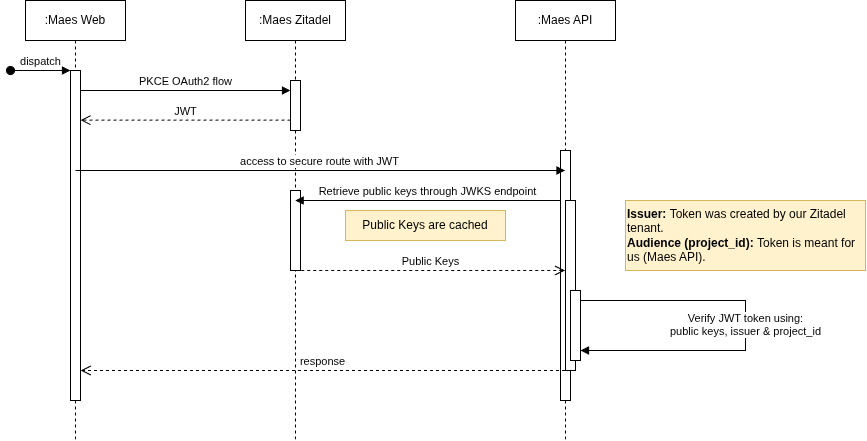

Main Auth Flow

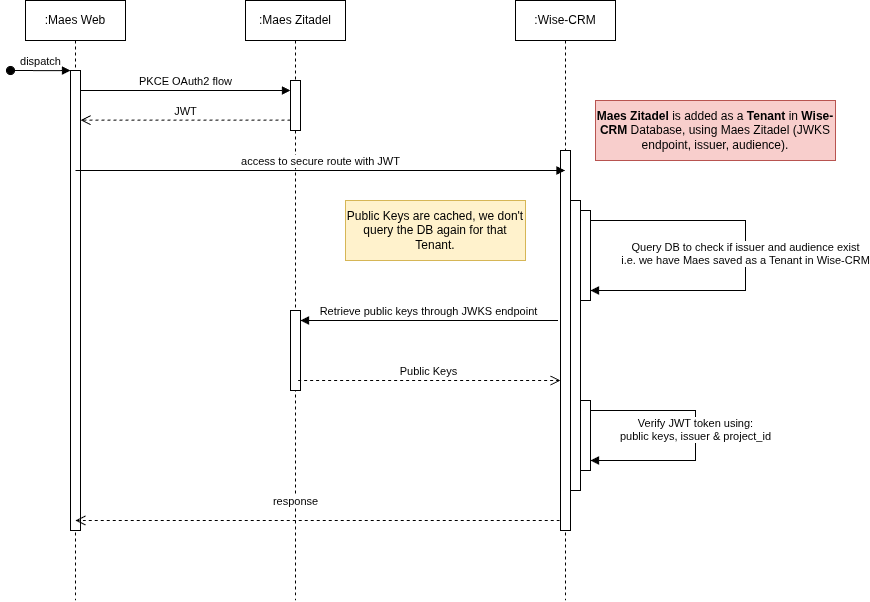

Web to Multi-tenant Auth Flow

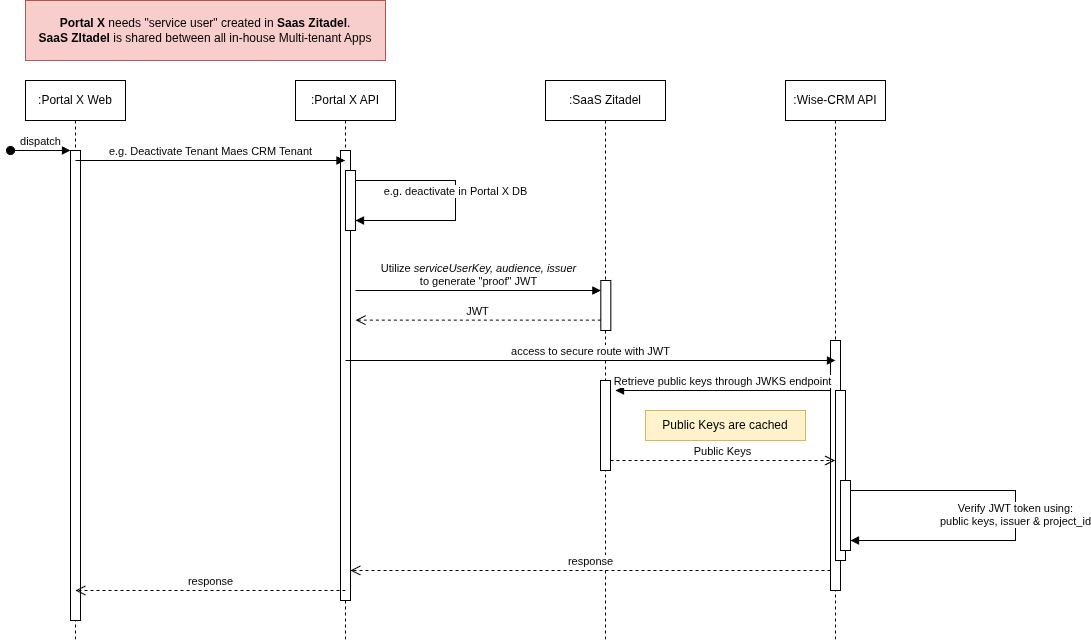

Portal X Flow

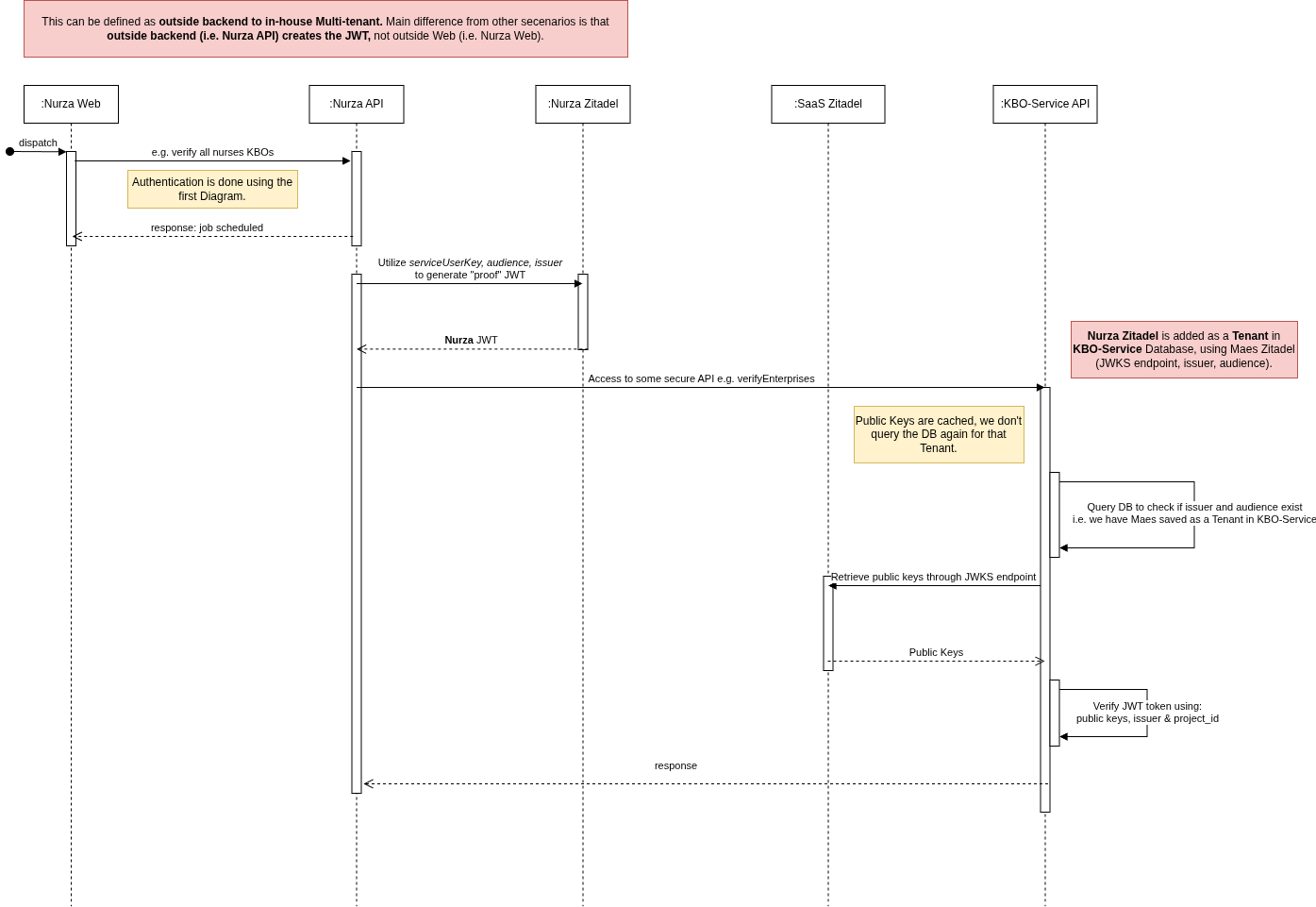

External API to Multi-tenant Flow

Notes

1. All diagrams were created with draw.io (diagrams.net). If you need to update them, you can import the .drawio.png files back into draw.io.
